Configuration Items
Setup Tool Configuration Items

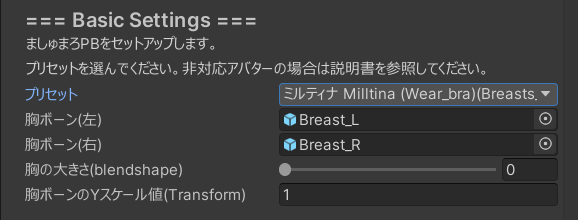

Basic Settings
Preset
Select the avatar preset here.
Chest Bone
Select your avatar’s chest bone here.
Chest Size (blendshape)
For supported avatars, set the value of the “increase chest size” shape key.
If your avatar uses a “decrease chest size” shape key, it’s not supported. Please configure it like an unsupported avatar.
Chest Bone Y Scale (Transform)
Enter the Y scale value of your chest bone here. X and Z scale values are not required.
Different values for X, Y, and Z on the actual chest bone will not cause issues.
PB Preset
Select a PhysBone preset here.
You can choose from three types of jiggle: “Smooth,” “PuruPuru,” and “TayunTayun,” each in three hardness levels.

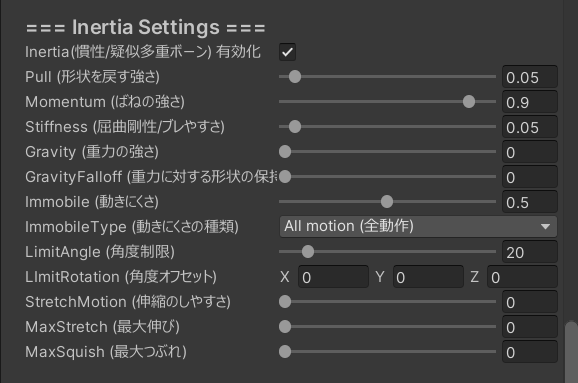

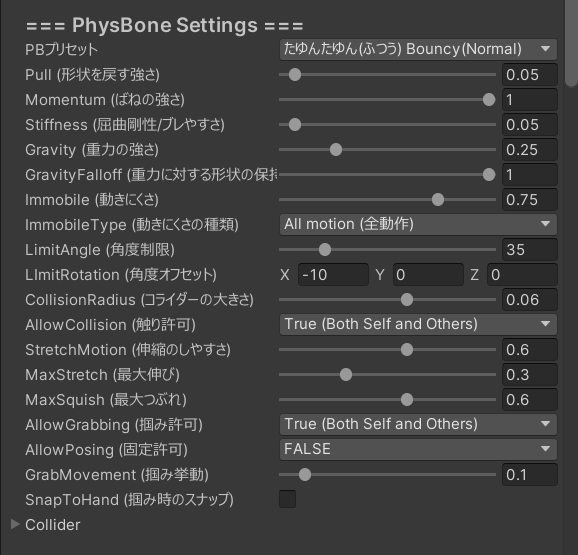

PhysBone
Pull
PhysBone’s “return-to-original-shape” strength parameter.
Momentum
PhysBone’s spring strength parameter.
Stiffness
How resistant the PhysBone is to bending (reduces “wobble”).
Gravity
Strength of gravity on the PhysBone.
GravityFalloff
How much the PhysBone retains its shape relative to its initial angle before gravity takes effect. The greater the angle from the start, the more gravity influences it.
Immobile
How resistant the PhysBone is to movement. This parameter does not affect behavior when pressing a collider.
LimitAngle
Angle limit for PhysBone movement.
CollisionRadius
Size of the PhysBone collider. Increasing this makes the detection for touching the chest larger.
LimitColliderPosition
A parameter for the position of the anti-clipping collider. Increasing it moderately can help prevent clipping.
(Example: 0.135 → 0.18)
StretchMotion
An inertia parameter for how easily the chest squishes (how the chest reacts when the avatar moves forward, etc.).
MaxStretch
Maximum extension of the PhysBone. The larger the value, the more it can stretch.
MaxSquish
Maximum squish of the PhysBone. The larger the value, the deeper it squishes. Conversely, making it smaller results in shallower squishing, which reduces clipping.
Collider
Up to six colliders that interact with the PhysBone.
Detailed Settings
Grab Function
Whether the PhysBone can be grabbed.
Floor Collider
Whether the PhysBone collides with the floor.
Chest Interference with Other Players
Whether to enable chest-to-chest interference with other players who also have Marshmallow PB. Also interacts with default head colliders.
Chest Jiggle Rotation
Whether the chest follows an elliptical jiggle motion. If off, it will jiggle in parallel.
Because the upward motion of the chest is restricted, you may wish to turn it off if it feels odd.

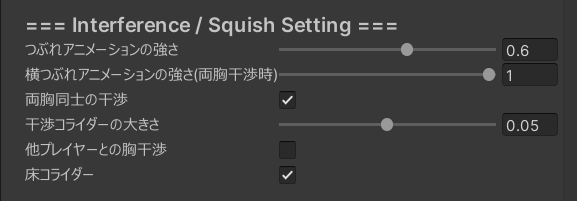

Interference Between Left and Right Chest
Whether to place colliders so that the left and right chests of the avatar interfere with each other.
Size of Interference Colliders
The size of colliders for interference between the left and right chests.

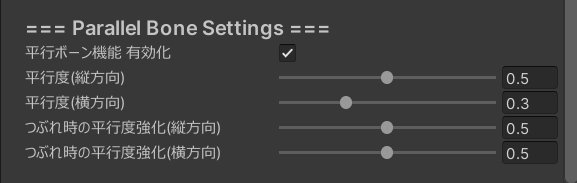

Chest Bone Rotation Influence
How much PhysBone rotation affects the chest bone. Setting this to 0 causes the chest bone to move in parallel. Depending on the clothing, a lower value may reduce clipping. (Equivalent to the Weight of the Rotation Constraint on the chest bone.)
Squish Animation Strength
Adjust the intensity of the chest squish animation. If the chest is large, it might spread too wide horizontally when squishing, so reducing this parameter can make it look more natural. (Equivalent to the Weight of the Scale Constraint on the chest bone.)

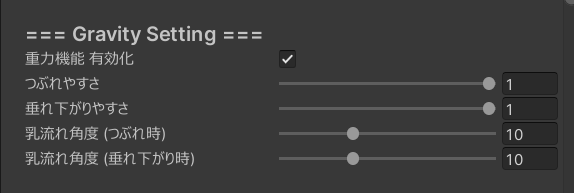

How Easily the Chest Sags
Maximum value for how much the chest sags when bending forward. Setting it to 0 disables sagging.
Chest Squish Ease (On Back)
Maximum squish when lying on your back. Setting it to 0 disables squish in that situation.

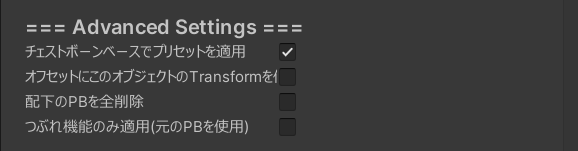

Advanced Settings
Apply Only Squish Function (Use Original PB)
Leaves the avatar’s original PB as is and applies only the squish function of Marshmallow PB. In practice, this disables Marshmallow PB’s jiggle function but keeps the original PB’s movement. If you use this, it’s recommended to turn off Allow Grabbing on the original PB.
Turn Off Squish Function (Clipping Countermeasure)
Disables the squish of Marshmallow PB, leaving only the jiggle function. If you absolutely cannot avoid clipping, turn this on.
Turn Off Gravity Function
Disables the mechanism that squishes the chest when lying on your back or stretches it when bending forward. It doesn’t disable the PhysBone “Gravity” parameter itself.
Remove All PB Under This Bone
Normally only the PB on the selected chest bone is removed, but enabling this also removes all PBs under that chest bone. If an unsupported avatar has a complex PB structure, turn this on.
Use This Object’s Transform as Offset
Uses marshmallow_PB_Setup’s position as an offset for Marshmallow PB’s position, rotation, and scale.
If your avatar’s height changes due to heels, for example, the Marshmallow PB may shift. Turning this on and moving marshmallow_PB_Setup in the same direction/amount can prevent that shift.
If Marshmallow PB is misaligned, you can fix it with this feature.
